We offer a comprehensive portfolio including resistors, braking units, reactors, power filters, and transformers, with full customization options to meet diverse application requirements.

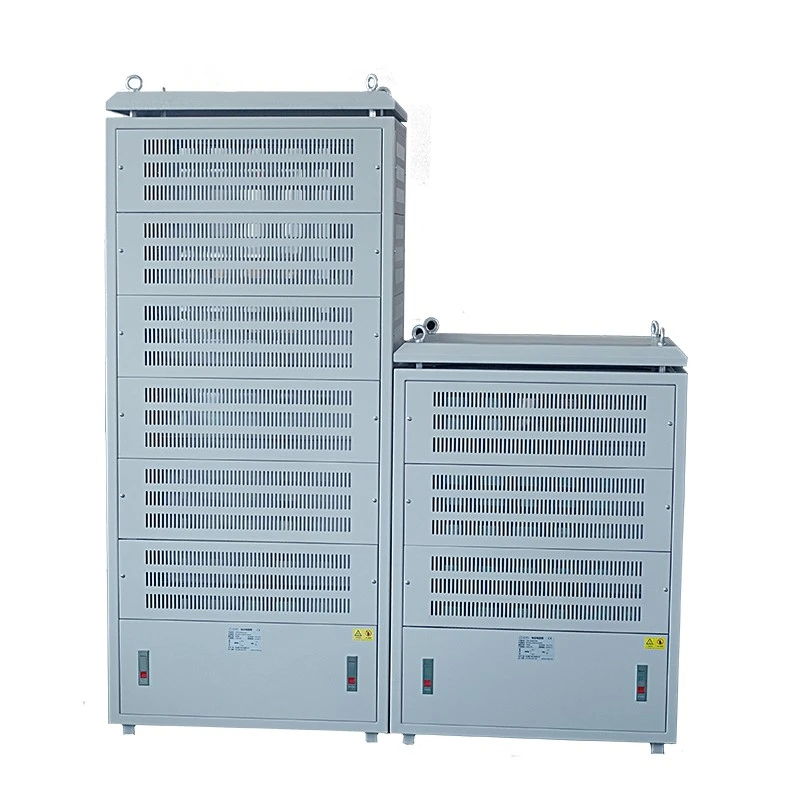

Dufew Electric Tubular Resistor Cabinet is designed to solve these challenges by using sealed stainless steel tubular resistor elements as the core heating components.
The resistance wire is precisely wound inside the stainless steel tube and filled with high-density magnesium oxide insulation material, forming a sealed heating structure with:
- Better environmental protection
- Improved mechanical strength
- Stable resistance performance
- Uniform heat distribution
Multiple tubular resistor elements are assembled into resistor layers through stainless steel conductive structures, while copper busbars connect each layer to form a complete high-power resistor system.
The cabinet supports:
| Parameter | Specification |
|---|---|
| Power Range | 20KW-500KW |
| Working Voltage | ≤3000V |
| Resistance Range | 0.01Ω-1KΩ |
| Resistance Accuracy | ±3% / ±5% / ±10% |
Dufew Electric provides customized configurations according to:
- Power requirements
- Resistance value
- Voltage level
- Installation environment
- Cooling requirements
- Cabinet dimensions
Traditional open resistor elements may be affected by moisture, dust, and corrosive environments during long-term operation.
Dufew tubular resistor elements use a sealed stainless steel tube structure to protect internal resistance wires from environmental exposure.
The magnesium oxide insulation filling provides:
- Electrical insulation
- Efficient thermal conduction
- Stable heat transfer
- Reduced moisture influence
Compared with exposed resistor structures, tubular resistors provide improved reliability for:
- Outdoor equipment
- Coastal applications
- Heavy industrial systems
- High-dust environments
| Comparison Item | Tubular Resistor Cabinet | Conventional Resistor Structure |
|---|---|---|
| Environmental Protection | Sealed stainless steel tube protects internal components | More sensitive to moisture, dust, and contamination |
| Mechanical Strength | High-strength metal tube structure with vibration resistance | Lower protection against mechanical impact |
| Heat Transfer | Uniform thermal conduction through tubular structure | Higher risk of uneven heating |
| Service Stability | Suitable for continuous industrial operation | Performance affected more by environment |
| Typical Applications | Ports, mining, chemical plants, heavy equipment | General indoor applications |
For applications requiring stable operation under harsh conditions, tubular resistor technology provides a more reliable solution.
| Requirement | Recommended Configuration |
|---|---|
| Outdoor installation | Sealed tubular resistor with enhanced protection design |
| High humidity environment | Stainless steel tubular element with moisture-resistant structure |
| Heavy vibration equipment | Reinforced cabinet structure and mechanical protection |
| Continuous operation | Optimized airflow and thermal management design |
| Customized resistance requirement | Multiple tubular resistor combinations |
Heavy industrial equipment, including cranes, mining systems, and large drive systems, often operates under continuous vibration and mechanical stress. Dufew tubular resistor elements are designed with stainless steel tube construction, integrated sealed structures, and strong mechanical protection to improve durability in demanding environments.
This robust structure helps reduce failures caused by equipment vibration, mechanical impact, and transportation stress, making it suitable for applications where long service life and operational reliability are required.
Uneven temperature distribution can accelerate resistor aging and affect resistance stability during long-term operation. The tubular resistor design improves thermal performance through high thermal conductivity metal tubes, magnesium oxide heat transfer materials, and optimized airflow arrangements.
Inside the cabinet, each resistor layer is designed with independent airflow space to reduce heat accumulation and achieve more uniform temperature distribution, helping maintain stable resistance values during continuous operation.
Dufew Tubular Resistor Cabinet adopts a layered resistor assembly design to improve maintenance efficiency and system reliability.
Each resistor layer includes independent conductive connections, dedicated airflow paths, and temperature monitoring to support easier fault isolation and simplified maintenance.
When one resistor section requires inspection, maintenance can be performed on the affected module without removing the entire cabinet, helping reduce equipment downtime.
The fully sealed metal tube structure provides protection against moisture, dust, and oil contamination, making it suitable for demanding industrial environments.
The use of high-density magnesium oxide insulation filling improves thermal conduction, reduces overheating risks, and supports stable resistor performance during continuous operation.
With stainless steel tube construction and enhanced vibration resistance, the resistor structure is suitable for heavy industrial equipment and harsh operating conditions.
Multiple tubular resistor combinations can be configured according to application requirements, supporting power capacity up to 500KW and customized resistance values.
The cabinet is available with standard IP20/IP23 protection grades, while higher protection levels can be provided according to specific project requirements.
Dufew Electric Tubular Resistor Cabinet is designed for industrial systems requiring reliable resistor performance under demanding operating conditions.
| Application | Typical Equipment | Environmental Challenges | Tubular Resistor Benefits |
|---|---|---|---|
| Port & Marine Equipment | Port cranes, lifting systems, coastal equipment | Salt spray, humidity, vibration | Corrosion resistance and mechanical durability |
| Mining Equipment | Hoisting systems, heavy-duty drives | Dust, vibration, continuous operation | Sealed structure and stable performance |
| Chemical Industry | Production lines, industrial drive systems | Moisture and contamination | Better environmental protection |
| Energy Storage Testing | Outdoor testing stations, power systems | Temperature changes and long-duration operation | Stable thermal performance |
| Parameter | Specification |
|---|---|
| Product Type | Tubular Resistor Cabinet |
| Heating Element | Stainless Steel Tubular Resistor |
| Power Range | 20KW-500KW |
| Working Voltage | ≤3000V |
| Resistance Range | 0.01Ω-1KΩ |
| Resistance Accuracy | ±3% / ±5% / ±10% |
| Protection Grade | IP20/IP23 |
| Temperature Coefficient | ≤300 ppm/℃ |
| Flame Retardant Grade | UL94V-2 |
| Reference Standard | GB-5792 |
Example: CRC 100KW 2.7R J
| Code | Description |
|---|---|
| CRC | Tubular Resistor Cabinet |
| 100KW | Rated Power |
| 2.7R | Rated Resistance |
| J | Resistance Accuracy (K=±10%, J=±5%, H=±3%) |
Dufew Electric performs electrical and mechanical verification to ensure reliable product performance before delivery.
| Test Item | Test Condition | Performance |
|---|---|---|
| Dielectric Strength | 2500VAC/50Hz/60S | Leakage current ≤10mA |
| Insulation Resistance | 1000VDC | ≥100MΩ |
| Short-Time Overload | 10 times rated power 5S | No visible damage |
| Long-Term Load Life | Cycle operation | >9000h |
| Damp Heat Test | 40℃±2 / 90%-95%RH /100h | △R≤±(1%R+0.05Ω) |
| Temperature Cycle | -55℃,55℃,155℃ cycles | △R≤±(2%R+0.05Ω) |
| Heat Resistance | 350℃/2h | No obvious damage |
| Test Item | Condition | Performance |
|---|---|---|
| Terminal Strength | 45N/30S | No looseness |
| Vibration Resistance | 5-200Hz,1g,98m/S² | No structural damage |
Before selecting a Tubular Resistor Cabinet, customers should consider the operating environment, electrical requirements, and installation conditions to ensure the resistor configuration matches the actual application.
The selection should consider installation location, humidity conditions, dust or corrosive exposure, and vibration requirements to ensure reliable operation under different industrial conditions.
Key electrical parameters, including rated power, working voltage, resistance value, and duty cycle, are required to determine a suitable resistor configuration.
Cabinet dimensions, cooling method, cable connection direction, and maintenance space should be considered to achieve proper installation and convenient operation.
Dufew Electric evaluates these parameters and recommends suitable tubular resistor configurations based on actual application conditions.
Dufew Electric is a professional power electronics component manufacturer in China, integrating resistor manufacturing, cabinet assembly, electrical testing, and customized engineering support to provide reliable industrial resistor solutions.
The manufacturing process includes precision resistance wire winding, magnesium oxide filling, stainless steel tube sealing, electrical performance testing, and cabinet integration to ensure stable product performance.
Precision winding technology ensures accurate resistance values and consistent electrical performance.
High-quality magnesium oxide filling provides electrical insulation and efficient thermal conduction for stable operation.
The sealed stainless steel tube structure improves mechanical strength and protection against harsh industrial environments.
Testing procedures verify resistance accuracy, insulation performance, and operating reliability before final assembly.
Cabinet integration includes resistor layer installation, conductive connection assembly, temperature protection installation, and complete structural assembly.
Before shipment, each cabinet is inspected for resistance value accuracy, electrical connection reliability, mechanical assembly quality, and compliance with product specifications.
Dufew Electric follows structured quality control procedures to ensure reliable product performance and consistent manufacturing standards.
Quality documents include ISO9001 Quality Management System Certification, CE Certification, Product Testing Reports, and Factory Inspection Records.
Technical documents and quality reports can be provided according to specific project requirements.
Dufew Electric prepares Tubular Resistor Cabinets according to industrial transportation requirements to ensure safe delivery and smooth installation.
Packaging includes export-standard packaging, moisture protection, internal reinforcement, and product identification labels.
Before shipment, engineers confirm important details such as cabinet dimensions, weight, lifting points, and installation requirements to support efficient installation after delivery.
Tubular resistors use a sealed stainless steel structure with better protection against moisture, dust, corrosion, and vibration, making them suitable for demanding industrial environments.
Yes. Protection configuration, cabinet structure, and cooling design can be customized according to different installation conditions and environmental requirements.
Yes. Dufew Electric supports customization of power, resistance, voltage, cabinet dimensions, and installation structures according to specific application requirements.
It is commonly used in ports, mining equipment, chemical production systems, heavy machinery, energy storage testing facilities, and other industrial applications.
The sealed stainless steel tube protects internal components while providing stable thermal transfer, strong mechanical protection, and reliable performance under harsh operating conditions.
Yes. The design supports continuous industrial operation through optimized thermal management, airflow design, and reliable component protection.
Customers should provide key application details, including power rating, voltage, resistance value, operating environment, duty cycle, and installation requirements.
Yes. Specifications, testing records, and quality documents can be provided according to specific project requirements.
Tubular Resistor Cabinet is a customized resistor solution designed for applications with different electrical and environmental requirements.
Dufew Electric provides solutions based on power rating, voltage requirements, resistance configuration, operating environment, and installation conditions.
Submit your project requirements and Dufew Electric engineers will recommend a suitable resistor configuration and cabinet design.
