Is the Variable Frequency Drive Filter the All-In-One Solution That Eliminates Both Power-Side EMI and Motor-Side Switching Pain Points for Modern VFD Control Systems

For industrial automation system integrators, VFD equipment purchasers and maintenance teams, long-standing operational pain points caused by bare unfiltered variable frequency drive installations have long troubled countless projects: conducted EMI interference leaking from VFDs to the power network disrupts nearby sensitive control equipment, while high-frequency PWM switching dv/dt stress and reflected-wave effects degrade motor winding insulation and generate unwanted motor noise, causing premature equipment damage and unexpected unplanned downtime. Using two separate individual input and output filters brings extra installation work, redundant wiring space occupation and higher total procurement cost. As a professional industrial power electronics component manufacturer with ISO and CE certifications, Dufew Electric has launched the industry-leading Variable Frequency Drive Filter, an integrated all-in-one assembly that perfectly combines input-side EMI suppression and output-side motor high-frequency filtering. This blog will fully cover its core technical design advantages, complete technical parameters, correct selection guidance, installation precautions and wide application values across different industrial scenarios, showing how this product can help industrial users eliminate two types of interference issues in a single compact unit. You can access the full official product details page for more exclusive custom configuration information via the dedicated anchor link Variable Frequency Drive Filter.

Table of Contents

• What Exactly Is the Dufew Variable Frequency Drive Filter?
• 4 Standout Core Integrated Design Advantages Over Separate Filters
• Complete Official Technical Specification Reference Table
• Key Selection Parameter Checklist for Proper Product Specification Matching
• 4 Critical Standard Installation Guidelines to Guarantee Full Filter Performance
• Frequently Asked Questions

What Exactly Is the Dufew Variable Frequency Drive Filter?

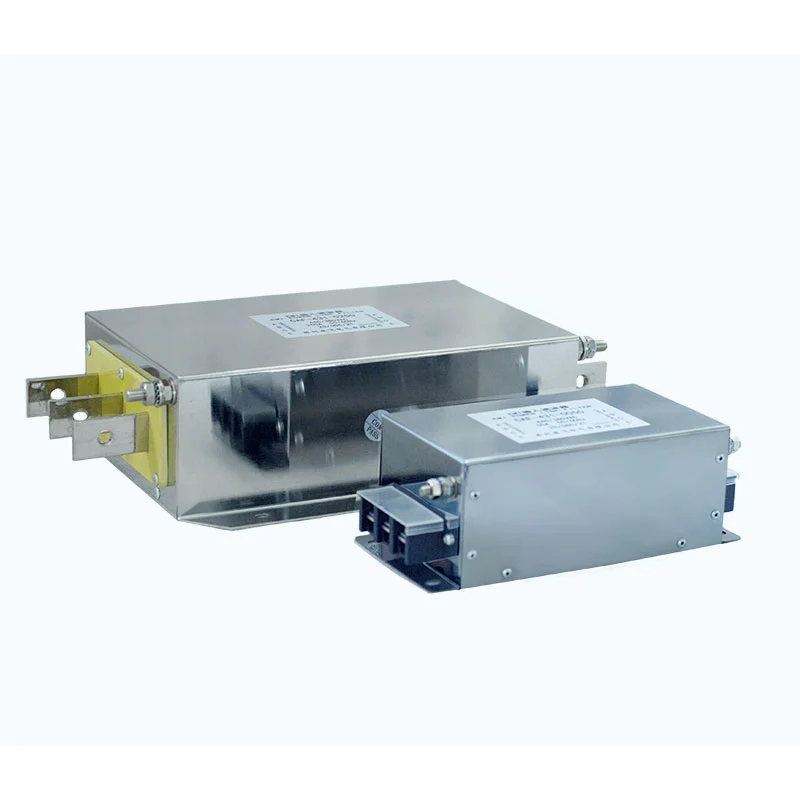

The Variable Frequency Drive Filter developed by Dufew Electric is a purpose-built integrated power filtering assembly designed exclusively for VFD and servo drive systems. Different from ordinary independent single-function input EMI filters or separate dv/dt output filters, this all-in-one unit integrates both input-side EMI filtering circuit and output-side motor filtering circuit inside one single compact housing, following the standard electrical flow path of Power Supply → Input Filtering → VFD → Output Filtering → Motor. The input section uses magnetic and capacitive components including common-mode chokes, differential-mode inductive components, X capacitors and Y capacitors to suppress conducted EMI between VFD and the power network; the output section attenuates high-frequency PWM switching components to reduce motor-side dv/dt, reflected-wave voltage stress and high-frequency motor noise. It can be selected with rated current ranging from 5A to 1600A, rated voltage options covering 220VAC to 1140VAC, and allows maximum 400m shielded motor cable length, perfectly adapting to diverse industrial motor control project demands. Dufew Electric, as a professional power electronics component manufacturer, also provides full customization service for special industrial application configurations.

4 Standout Core Integrated Design Advantages Over Separate Filters

Every engineering optimization of Dufew Variable Frequency Drive Filter is targeted to solve practical on-site operation pain points collected from thousands of industrial automation projects, forming 4 unmatched core advantages that two separate filters cannot achieve:

• Single Compact Unit Reduces Installation Workload Dramatically The all-in-one integrated housing eliminates the need for installing two separate filter enclosures, cutting down redundant wiring work, saving control cabinet installation space and greatly reducing total on-site assembly time for system integrators.
• Pre-Optimized Circuit Matching Ensures Consistently Stable Filtering Performance The internal input and output filtering circuits are pre-matched by professional engineers during the production process, avoiding potential performance mismatch issues that may easily occur when users purchase two separate filters from different suppliers, delivering optimized comprehensive filtering effect for the whole VFD system.
• Strict Quality Control Throughout The Whole Manufacturing Process The full production flow covers component incoming inspection, magnetic component processing, winding and insulation, filter assembly, electrical performance testing and final inspection, all products are certified with ISO and CE, ensuring stable and reliable long-term industrial operation performance.
• Rich Flexible Customization Support Capability The full product portfolio covers rated current 5A to 1600A and voltage levels from 220VAC to 1140VAC, which can fully meet the configuration requirements of different power level VFD systems, servo drive systems and various special application scenarios.

Complete Official Technical Specification Reference Table

All performance parameters of Dufew Variable Frequency Drive Filter strictly follow industrial top-tier power electronics standards, the complete detailed technical indicators are arranged in the table below:

Key Selection Parameter Checklist for Proper Product Specification Matching

For industrial project purchasers, only specifying the filter by motor power alone is not sufficient for selecting the most suitable Variable Frequency Drive Filter, you should provide the following full set of information to get the most accurate specification recommendation:

1. VFD model and manufacturer, to determine the applicable input and output configuration matching requirement of the drive system.
2. System rated voltage and VFD input/output rated current, to ensure the selected filter electrical rating fully matches the drive system.
3. Motor power in kW or HP, to accurately evaluate the output-side filtering demand according to the actual motor operation condition.
4. Actual motor cable length in meters and cable type (shielded / unshielded), which is critical for dv/dt and reflected-wave effect assessment.
5. VFD switching / carrier frequency value, to evaluate the high-frequency filtering performance requirement of the output section.
6. Specific on-site interference phenomenon you are facing, such as power-side EMI, nearby control equipment disturbance, high motor dv/dt, reflected-wave voltage, high-frequency motor noise, to confirm that the required filter configuration is input filtering only, output filtering only, or integrated all-in-one filtering.
7. Installation environment information such as control cabinet, machine or production line location, and grounding arrangement, to determine the appropriate installation mode and EMC optimization design.

The CAF series model identification rule of Dufew filter is: typical model CAF-431-0010, where "CAF" represents Dufew filter series, "4" stands for 380V voltage class, "3" represents three-phase configuration, "1" represents input filter, "0010" represents 10A rated current. For the integrated input/output configuration, the applicable model code should be confirmed against corresponding product drawing and specification.

4 Critical Standard Installation Guidelines to Guarantee Full Filter Performance

Correct installation is extremely important for this filter, because unsuitable wiring can let high-frequency interference bypass part of the filtering circuit and reduce actual performance, users must strictly follow the 4 key installation rules below:

• Never Interchange Input and Output Terminals Connect the input section between power supply and VFD, connect the output section between VFD and motor, follow the product wiring diagram strictly, wrong connection will completely invalidate the filter performance and may even cause equipment damage.
• Route Input and Output Cables Separately Never arrange long parallel runs between filter input conductors and output conductors, otherwise electromagnetic coupling between two sets of cables will seriously reduce filtering effectiveness.
• Use Short Low-Impedance Grounding Path The filter must be grounded according to local electrical installation requirements and VFD manufacturer's EMC instructions, short and wide grounding conductor is highly recommended for high-frequency interference suppression performance.
• Execute Full Pre-Operation Verification Before energizing the whole system, double check filter voltage and current rating correctness, all terminal connections, grounding condition, cable routing, motor connection and mechanical mounting status, to avoid unnecessary on-site failure risks.

Frequently Asked Questions

We have collected and sorted out the most common questions from global industrial automation system integrators and VFD project customers about the Variable Frequency Drive Filter, helping you clear all possible doubts before procurement and on-site deployment:

Q1: What is the difference between this integrated filter and an independent input filter or output filter?
A: An independent input filter is only installed between power supply and VFD to control conducted EMI, while an independent output filter is only installed between VFD and motor to control high-frequency dv/dt and reflected-wave effects. Dufew's integrated Variable Frequency Drive Filter combines both filtering circuits inside one single assembly, eliminating the trouble of installing two separate units.

Q2: Does every VFD installation need both input and output filtering?
A: No. The actual required configuration depends on the on-site problem being solved. If you only face EMI interference leaking to the power network, you may only need input-side EMI filter; if you only deal with long motor cable reflected-wave issue, you may only need output-side filter, the integrated configuration is suitable for applications that need to solve both power-side and motor-side interference problems at the same time.

Q3: Can this product be used with servo drive systems?
A: Yes, it can be evaluated for servo drive applications where input-side EMI or motor-side high-frequency interference needs to be controlled, as long as the filter electrical rating is properly matched with the servo drive system parameters.

Q4: Does this integrated filter replace a dedicated power harmonic compensation system?
A: Not necessarily. This product is primarily designed for EMI and high-frequency filtering around VFD systems, it cannot directly replace dedicated harmonic filter if your core requirement is to control specific low-frequency harmonic orders or total THD of the power system, which needs separate dedicated harmonic mitigation solution evaluation.

Q5: Does the filter need manual electronic adjustment during on-site commissioning?
A: No electronic adjustment is normally required because this filter is a fully passive device, you just need to complete correct model selection, proper wiring, good grounding and standard installation to make it work as expected.

Q6: What is the maximum allowed motor cable length for this filter?
A: The product maximum supported cable length is 400m for shielded cable and 300m for unshielded cable, but actual applicable value is application-dependent, which should be verified according to the actual VFD output characteristics, motor insulation, cable type, grounding arrangement and selected specific filter model.

No matter you are an industrial automation system integrator who is looking for high quality integrated VFD filter product to solve dual interference problems for your new motor control project, a VFD equipment manufacturer who wants to match certified high-performance filtering components for your new generation drive product line, or a global industrial power electronics component distributor seeking long-term stable qualified supplier with ISO and CE certification, Dufew Electric can provide you with full one-stop professional services including free technical specification consultation, customized non-standard configuration development, complete test records and full-cycle after-sales support. Our strict full quality control system and rich industrial application experience ensure every delivered filter product can fully meet the highest industrial reliability standards, contact us now to get the latest product quotation, detailed technical datasheet and exclusive customized Variable Frequency Drive Filter solution tailored perfectly for your industrial motor control project!
