We offer a comprehensive portfolio including resistors, braking units, reactors, power filters, and transformers, with full customization options to meet diverse application requirements.

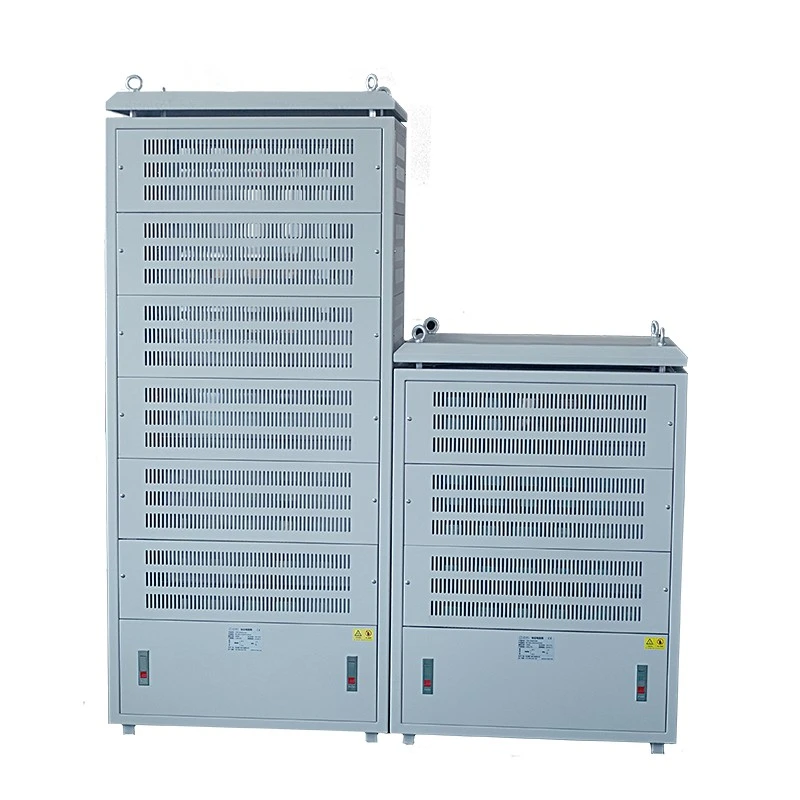

Inverter Braking Resistor Cabinet is a critical component used in variable frequency drive (VFD) regenerative braking applications.
When a motor controlled by a frequency converter decelerates rapidly, the motor may enter regenerative operation and return electrical energy to the inverter DC bus. This regenerated energy increases the DC bus voltage.
If the excess energy cannot be released effectively, the inverter system may experience:
- DC bus overvoltage alarms
- Unexpected inverter shutdown
- Braking failure
- Reduced equipment efficiency
- Potential damage to power modules
Dufew Electric Inverter Braking Resistor Cabinet works together with the braking unit to safely consume regenerated energy and maintain stable inverter operation.
During the braking process:
1. The motor generates regenerative energy during deceleration.
2. The braking unit detects increased DC bus voltage.
3. The braking resistor cabinet is connected to the braking circuit.
4. The resistor converts electrical energy into heat energy.
5. The cabinet cooling structure removes the generated heat.
This controlled energy dissipation process helps maintain stable operation during frequent acceleration, deceleration, and emergency braking cycles.
Unlike general-purpose resistor cabinets, an inverter braking resistor cabinet requires accurate matching with the complete drive system.
Incorrect resistor selection may lead to:
- Insufficient braking torque
- Excessive resistor temperature
- Shortened service life
- Unstable inverter operation
- Reduced braking efficiency
Dufew Electric evaluates the actual working conditions before designing the braking resistor cabinet.
Key selection parameters include:
| Selection Factor | Influence on Design |
|---|---|
| Inverter Voltage | Determines insulation requirements and resistor configuration |
| Motor Power | Determines energy absorption capacity |
| Braking Frequency | Affects thermal design and resistor capacity |
| Load Inertia | Determines regenerative energy level |
| Braking Time | Influences overload capability |
| Duty Cycle | Determines continuous or intermittent operation |
| Installation Environment | Affects cabinet structure and cooling method |
Through engineering-based selection, Dufew Electric provides braking resistor solutions matched to the actual application requirements.
In heavy industrial equipment, motors frequently operate under changing load conditions.
During:
- Rapid deceleration
- Emergency stopping
- Heavy load lowering
- Frequent start-stop cycles
the motor can generate significant regenerative energy.
Without an effective energy absorption device, this energy accumulates in the inverter DC bus and causes voltage rise.
Dufew Electric Inverter Braking Resistor Cabinet provides a controlled discharge path by converting regenerative electrical energy into heat.
Benefits include:
- Reduced DC bus voltage fluctuation
- Improved inverter protection
- More stable braking performance
- Reduced unexpected shutdown risk
Dufew Electric uses modular corrugated resistor assemblies specifically designed for dynamic braking applications, providing reliable energy absorption performance under frequent braking conditions.
The corrugated resistor elements feature a large heat dissipation surface, high power density, stable resistance performance, and suitability for repeated braking cycles.
The cabinet integrates multiple resistor modules through reliable conductive structures and copper busbars. Each resistor layer is designed with independent electrical connections, dedicated heat dissipation space, reinforced conductive structures, and temperature monitoring protection.
The modular design provides several advantages:
Multiple resistor modules distribute braking energy evenly, reducing thermal stress on individual components and maintaining stable braking performance during continuous operation.
The resistor capacity can be customized according to motor power, braking frequency, load characteristics, and operating cycle requirements.
If one resistor module requires inspection or replacement, technicians can service the affected section without replacing the complete cabinet, reducing maintenance time and cost.
Heat management is one of the most important factors in braking resistor design. During frequent braking cycles, excessive temperature rise may cause resistance value variation, reduced braking efficiency, component aging, and shortened service life.
Dufew Electric designs thermal management solutions according to actual operating conditions. The cabinet can include optimized airflow channels, independent ventilation space, side exhaust cooling structures, forced cooling fans, and temperature protection devices.
For inverter rooms and compact electrical installations, side exhaust cooling helps reduce hot air circulation around inverter equipment, improve electrical room thermal management, and prevent heat accumulation near control cabinets.
Cooling solutions can be customized according to braking frequency, installation space, continuous operation requirements, and environmental conditions.
Different industrial sites have different installation limitations. Dufew Electric supports customized cabinet structures according to customer requirements and application conditions.
Floor installation is suitable for electrical rooms, industrial control areas, equipment rooms, and drive system rooms.
Its advantages include easy maintenance access, stable installation structure, and suitability for large power systems.
Side-mounted installation is suitable for applications with limited installation space, integrated equipment systems, and compact electrical layouts.
Customization options include cabinet dimensions, cable entry direction, mounting structure, and cooling configuration.
Dufew braking resistor cabinets are designed specifically for frequency converter braking systems, regenerative energy absorption, motor deceleration control, and dynamic braking applications.
The system supports power ranges from 20KW to 500KW and working voltage up to ≤3000V, making it suitable for medium and high-power inverter applications.
The cabinet adopts reinforced copper busbars, stainless steel conductive structures, and optimized internal wiring designs to improve current carrying capability, reduce connection losses, and maintain stable high-load operation.
The cabinet can integrate temperature protection switches, cooling fans, protective terminals, and customized enclosure structures to improve safety and reliability during long-term operation.
Dufew Electric Inverter Braking Resistor Cabinet is widely used in industrial systems requiring reliable regenerative energy control.
| Application | Equipment | Main Requirement |
|---|---|---|
| Port Equipment | Cranes, lifting systems | Frequent braking and heavy load energy absorption |
| Mining Systems | Mine hoists, lifting equipment | High inertia load control and continuous operation |
| Elevator Systems | Industrial elevators, lifting platforms | Repeated acceleration and braking cycles |
| Steel Industry | Rolling mills, heavy drives | High-frequency regenerative braking |
| Industrial Machinery | Large motor systems | Stable inverter operation |
| Test Systems | Motor testing platforms | Controlled resistance load absorption |
| Parameter | Specification |
|---|---|
| Product Type | Inverter Braking Resistor Cabinet |
| Application | VFD Regenerative Braking System |
| Resistor Element | Corrugated Resistor |
| Power Range | 20KW-500KW |
| Working Voltage | ≤3000V |
| Resistance Range | 0.01Ω-1KΩ |
| Resistance Accuracy | ±3% / ±5% / ±10% |
| Protection Grade | IP20/IP23 |
| Temperature Coefficient | ≤300 ppm/℃ |
| Flame Retardant Grade | UL94V-2 |
| Reference Standard | GB-5792 |
Example: CRC 100KW 2.7R J
| Code | Description |
|---|---|
| CRC | Braking Resistor Cabinet |
| 100KW | Rated Power |
| 2.7R | Rated Resistance |
| J | Resistance Accuracy (K=±10%, J=±5%, H=±3%) |
Before shipment, Dufew Electric performs electrical and mechanical testing to verify product reliability.
| Test Item | Test Condition | Performance |
|---|---|---|
| Dielectric Strength | 2500VAC/50Hz/60S | Leakage current ≤10mA |
| Insulation Resistance | 1000VDC | ≥100MΩ |
| Short-Time Overload | 10 times rated power 5S | No visible damage |
| Long-Term Load Life | Cyclic operation | >9000h |
| Damp Heat Test | 40℃±2 /90%-95%RH/100h | △R≤±(1%R+0.05Ω) |
| Temperature Cycle | -55℃,55℃,155℃ cycles | △R≤±(2%R+0.05Ω) |
| Heat Resistance | 350℃/2h | No obvious damage |
Every VFD braking application has different operating conditions and performance requirements. Dufew Electric provides engineering evaluation and customized solutions based on specific system parameters, installation conditions, and operating environments.
The braking resistor configuration is designed according to key drive system parameters, including inverter voltage, motor power, braking frequency, braking time, and duty cycle.
Installation requirements are carefully considered to ensure proper cabinet design and reliable operation, including cabinet dimensions, cooling requirements, indoor or outdoor environment, and cable connection requirements.
Different operating conditions require different braking solutions, such as continuous braking, emergency stopping, and frequent acceleration or deceleration applications.
Based on these parameters, Dufew Electric designs suitable braking resistor configurations and cabinet structures to meet different application requirements.
Dufew Electric integrates resistor element manufacturing, cabinet assembly, thermal design, electrical testing, and engineering support to provide complete braking resistor solutions.
This integrated manufacturing capability helps ensure consistent product quality from component production to final delivery.
The resistor assembly process includes corrugated resistor element production, resistance verification, and electrical connection assembly to ensure stable performance.
Cabinet integration includes resistor layer installation, copper busbar assembly, protection component installation, and cooling system integration for reliable operation.
Each braking resistor cabinet is inspected for resistance accuracy, insulation performance, electrical connection reliability, and mechanical assembly quality before delivery.
Dufew Electric follows structured quality management procedures to ensure consistent product performance and reliable operation.
Quality documents include:
- ISO9001 Quality Management System Certification
- CE Certification
- Product Testing Reports
- Factory Inspection Records
Technical documents and inspection reports can be provided according to specific project requirements.
Dufew Electric provides professional transportation preparation for industrial electrical equipment, ensuring each braking resistor cabinet is properly protected during shipment and ready for installation after delivery.
The packaging process includes export-standard wooden packaging, moisture protection, internal fixing structures, and product identification labels to improve transportation safety.
Before shipment, engineers confirm important details such as cabinet dimensions, product weight, lifting requirements, and installation information to help ensure smooth installation and commissioning at the customer site.
During motor deceleration, regenerative energy increases inverter DC bus voltage. The braking resistor cabinet absorbs and converts this excess energy into heat, helping prevent inverter overvoltage faults and maintain stable system operation.
The selection depends on multiple factors, including inverter voltage, motor power, braking frequency, load inertia, braking time, resistance value, and duty cycle. These parameters determine the suitable resistor configuration and thermal design.
Yes. Dufew Electric designs braking resistor cabinets according to electrical parameters and application requirements rather than specific inverter brands, allowing compatibility with different VFD systems.
Yes. The modular corrugated resistor structure and optimized thermal management design are developed for repeated acceleration and braking cycles, making them suitable for demanding industrial applications.
Yes. Dufew Electric provides customized solutions according to different system requirements, including power rating, resistance value, voltage level, cabinet dimensions, cooling design, and installation structure.
To provide a suitable solution, customers should provide application details such as inverter voltage, motor power, braking frequency, duty cycle, installation environment, and required resistance value.
Yes. Dufew Electric provides engineering evaluation, technical documents, testing reports, and customized braking resistor solutions to support different industrial projects.
Different VFD systems require different braking resistor configurations. Dufew Electric provides customized inverter braking resistor cabinet solutions based on inverter parameters, motor characteristics, braking requirements, installation conditions, and thermal management needs.
With professional resistor manufacturing capability, engineering support, and complete testing procedures, Dufew Electric helps industrial customers develop reliable regenerative braking systems with stable performance.
Contact Dufew Electric with your inverter and application requirements to receive a suitable braking resistor cabinet solution.
