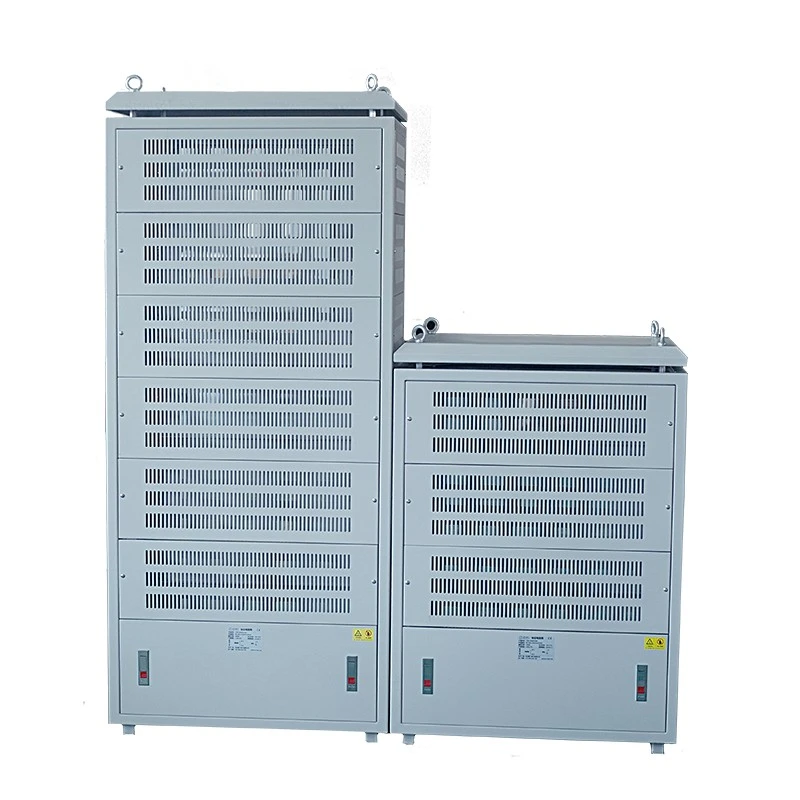

Dufew Electric High Power Resistor Cabinet integrates multiple resistor elements into a complete cabinet system through stainless steel conductive connections and copper busbars.
The cabinet is designed for:
- High-power energy dissipation
- Large-current operation
- Industrial resistance load applications
- Customized resistor solutions
Unlike standard resistor boxes designed for small and medium power applications, this cabinet adopts a modular multi-layer structure, allowing higher power capacity, easier maintenance, and flexible configuration.
Available specifications:
- Power range: 20KW-500KW
- Working voltage: ≤3000V
- Resistance range: 0.01Ω-1KΩ
- Resistance accuracy: ±3% / ±5% / ±10%
Dufew Electric provides customized solutions according to equipment power, duty cycle, installation environment, and electrical requirements.
| Parameter | Specification |
|---|---|
| Product Type | High Power Resistor Cabinet |
| Power Range | 20KW-500KW |
| Working Voltage | ≤3000V |
| Resistance Range | 0.01Ω-1KΩ |
| Resistance Accuracy | ±3% / ±5% / ±10% |
| Protection Grade | IP20/IP23 |
| Temperature Coefficient | ≤300 ppm/℃ |
| Flame Retardant Grade | UL94V-2 |
| Reference Standard | GB-5792 |
Dufew Electric provides customized resistor cabinet solutions based on key application requirements, including power capacity, operating voltage, resistance value, duty cycle, cooling conditions, installation environment, and cabinet dimensions.
Industrial equipment requires resistor systems that can withstand repeated operation, high thermal loads, and demanding working conditions. Dufew Electric designs solutions to address these challenges and ensure stable performance in high-power applications.
Equipment such as motors, drives, and lifting systems may generate excess electrical energy during braking or operation. Without effective resistance management, this energy can lead to voltage fluctuations, system instability, equipment protection activation, and reduced operational efficiency.
High-power resistor applications generate significant heat during operation. Without proper thermal design, excessive temperature rise may cause uneven temperature distribution, resistance value drift, accelerated component aging, and reduced service life.
Different industrial projects require different power ratings, resistance values, voltage levels, installation structures, and cooling methods to meet specific operating conditions.
Dufew Electric designs resistor cabinets according to actual application requirements, providing customized solutions instead of only standard fixed models.
A major advantage of Dufew Electric High Power Resistor Cabinet is the ability to select suitable resistor elements according to application requirements.
The cabinet can integrate different resistor technologies:
| Resistor Element Type | Characteristics | Typical Applications |
|---|---|---|
| Corrugated Resistor Element | High power density, efficient heat dissipation, suitable for large energy absorption | Braking systems, industrial drives, heavy machinery |
| Tubular Resistor Element | Sealed structure, moisture resistance, strong mechanical durability | Outdoor equipment, ports, mining systems |
| Aluminum Housed Resistor Element | Compact structure, good protection, flexible installation | Industrial control systems, compact resistance applications |
This modular design allows customers to obtain a suitable resistor configuration without redesigning the complete system.
For high-power industrial applications, electrical connection reliability directly affects system stability and long-term operating performance. Dufew Electric High Power Resistor Cabinet is designed with reinforced electrical structures to support demanding operating conditions.
The cabinet uses stainless steel conductive structures, copper busbar connections, reliable internal wiring arrangements, and electrical isolation between resistor sections to ensure stable current transmission.
This design helps reduce connection resistance, improve current carrying capability, and maintain stable operation under high-load conditions.
Multiple resistor modules can be combined to achieve different power requirements, allowing flexible configuration according to application conditions.
The modular design provides customized power capacity, adjustable resistance values, easier future modification, and suitability for different duty cycles.
High-power resistors generate substantial heat during operation. Effective thermal management is essential to maintain stable resistance performance and extend service life.
Dufew Electric optimizes heat dissipation through independent airflow design, customized cooling solutions, and integrated temperature protection.
Each resistor section is arranged with dedicated airflow space to improve heat removal efficiency, reduce heat accumulation, and maintain consistent operating temperature.
According to different application requirements, cooling methods can include natural air cooling, forced air cooling, and customized ventilation structures.
The cabinet can integrate temperature monitoring and protection components to prevent overheating, improve operating safety, and extend resistor service life.
Industrial customers require equipment that provides reliable performance while allowing convenient maintenance. Dufew Electric High Power Resistor Cabinet adopts a modular internal structure to simplify inspection and servicing.
Each resistor section includes independent electrical connections, separate installation structures, clear maintenance access, and individual protection designs.
If a resistor section requires inspection, technicians can service the affected module without replacing the complete cabinet, helping reduce maintenance time and downtime.
Independent resistor sections help isolate potential failures and improve overall system reliability during continuous operation.
The modular design allows additional resistor capacity to be considered during future system upgrades, providing greater flexibility for changing application requirements.
Dufew Electric High Power Resistor Cabinet is used in industries requiring reliable resistance solutions for energy absorption, testing, and power control.
| Application | Typical Equipment | Main Requirements | Dufew Solution |
|---|---|---|---|
| Industrial Drive Systems | Variable frequency drives, servo systems, motor control equipment | Energy absorption during braking and operation stability | High-power resistor modules with customized resistance configuration |
| Heavy Lifting Equipment | Port cranes, tower cranes, hoisting systems | Frequent braking cycles and high energy loads | Durable resistor cabinet design for repeated operation |
| Mining Equipment | Hoisting systems, heavy-duty drives | Vibration resistance and continuous operation | Robust structure with reliable thermal performance |
| Manufacturing Equipment | Rolling mills, injection molding machines, textile machinery | Stable resistance performance during production | Customized resistor configuration for industrial conditions |
| Power Testing Systems | Equipment testing platforms, electrical test systems | Controlled electrical loading and reliability verification | Flexible high-power load solutions |
Choosing a High Power Resistor Cabinet requires more than simply selecting the rated power. Dufew Electric evaluates the complete operating environment and application requirements before recommending a suitable configuration.
The selection process considers key electrical parameters, including rated power, working voltage, resistance value, current requirements, and duty cycle, to ensure the resistor cabinet matches the system requirements.
Operating conditions also play an important role in configuration selection. Factors such as continuous or intermittent operation, working frequency, load duration, and energy absorption requirements need to be considered.
The installation environment affects cabinet structure and cooling design. Important considerations include indoor or outdoor installation, available installation space, cooling conditions, dust or moisture exposure, and maintenance requirements.
Based on these factors, Dufew Electric provides suitable resistor element selection, cabinet structures, and thermal management designs to meet different industrial application requirements.
| Parameter | Specification |
|---|---|
| Product Type | High Power Resistor Cabinet |
| Resistor Element Options | Corrugated / Tubular / Aluminum Housed |
| Power Capacity | 20KW-500KW |
| Working Voltage | ≤3000V |
| Resistance Range | 0.01Ω-1KΩ |
| Resistance Accuracy | ±3% / ±5% / ±10% |
| Protection Grade | IP20/IP23 |
| Temperature Coefficient | ≤300 ppm/℃ |
| Flame Retardant Grade | UL94V-2 |
| Standard | GB-5792 |
Example: CRC 100KW 2.7R J
| Code | Description |
|---|---|
| CRC | High Power Resistor Cabinet |
| 100KW | Rated Power |
| 2.7R | Rated Resistance |
| J | Resistance Accuracy (K=±10%, J=±5%, H=±3%) |
To ensure reliable operation before delivery, Dufew Electric performs electrical and mechanical inspections.
| Test Item | Test Condition | Performance |
|---|---|---|
| Dielectric Strength | 2500VAC/50Hz/60S | Leakage current ≤10mA |
| Insulation Resistance | 1000VDC | ≥100MΩ |
| Short-Time Overload | 10 times rated power 5S | No visible damage |
| Long-Term Load Life | Cycle operation | >9000h |
| Damp Heat Test | 40℃±2 / 90%-95%RH /100h | △R≤±(1%R+0.05Ω) |
| Temperature Cycle | -55℃,55℃,155℃ cycles | △R≤±(2%R+0.05Ω) |
| Heat Resistance | 350℃/2h | No obvious damage |
| Test Item | Condition | Performance |
|---|---|---|
| Terminal Strength | 45N/30S | No looseness |
| Vibration Resistance | 5-200Hz,1g,98m/S² | No structural damage |
Dufew Electric integrates resistor component manufacturing, cabinet assembly, thermal design, electrical testing, and customized engineering support to provide complete power resistor solutions for industrial applications.
This integrated manufacturing capability helps ensure product consistency and quality control throughout the process, from resistor selection and production to final delivery.
The resistor assembly process includes resistor element selection, resistance value verification, and electrical connection assembly to ensure stable electrical performance.
Cabinet integration includes multi-layer resistor installation, copper busbar assembly, protection component installation, and cooling structure integration to achieve reliable operation under high-power conditions.
Before shipment, each cabinet is inspected to verify resistance accuracy, electrical insulation performance, connection reliability, mechanical assembly quality, and compliance with product specifications.
Dufew Electric follows structured quality management procedures to ensure stable product performance and reliable operation throughout the service life.
Quality documents include:
- ISO9001 Quality Management System Certification
- CE Certification
- Product Testing Reports
- Factory Inspection Records
Technical documents and inspection reports can be provided according to specific project requirements.
As industrial equipment, High Power Resistor Cabinets require reliable transportation preparation to ensure product safety during shipment and smooth installation after delivery.
Dufew Electric provides export-standard packaging solutions, including moisture protection, internal reinforcement structures, and product identification labels to improve transportation reliability.
Before shipment, engineers confirm key details such as cabinet dimensions, product weight, lifting requirements, and installation information to help customers complete installation efficiently after delivery.
A High Power Resistor Cabinet is used for high-power energy absorption, electrical load simulation, current limiting, and various industrial resistance applications where reliable power control is required.
Dufew Electric solutions support power ratings from 20KW to 500KW and can be configured according to specific customer requirements.
Yes. Different resistor elements, including corrugated, tubular, and aluminum housed resistor types, can be selected according to application conditions and performance requirements.
Yes. Dufew Electric provides customized solutions based on power rating, resistance value, voltage level, cabinet dimensions, cooling design, and other application requirements.
The cabinet uses optimized airflow design, proper resistor layer arrangement, and optional cooling systems to maintain stable thermal performance during operation.
Customers should provide key application information, including required power, voltage, resistance value, duty cycle, and installation environment, allowing Dufew Electric to design a suitable solution.
Yes. Dufew Electric provides engineering support, technical documents, and product testing information according to specific project requirements.
Different industrial applications require different resistor configurations. Dufew Electric provides customized solutions based on power requirements, voltage conditions, resistance configuration, operating environment, and installation requirements.
With professional manufacturing capability and engineering support, Dufew Electric helps customers develop reliable industrial resistor solutions for different power applications.
Contact Dufew Electric to discuss your project requirements and receive a suitable industrial resistor solution.
