Sine Wave Filter

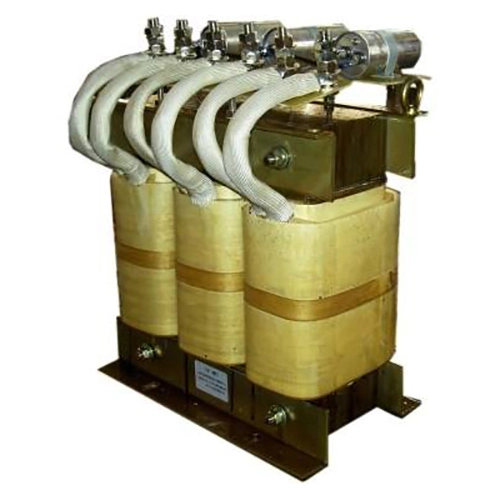

Dufew Electric Sine Wave Filter is installed at the output side of VFD systems to improve motor-side waveform quality and provide reliable motor protection in industrial applications. During VFD switching operation, high-frequency PWM voltage pulses are generated and transmitted through motor cables, especially in long-distance installations, which may cause reflected voltage, increased dv/dt stress, electromagnetic interference, and additional motor losses.

The VFD Sine Wave Filter adopts an LC low-pass filtering structure composed of reactors and capacitors. The filtering network attenuates carrier-frequency components and high-frequency harmonics from PWM output signals while allowing the fundamental frequency voltage to pass through efficiently, converting the output waveform into a smoother near-sinusoidal waveform.

The filtering process helps:

- Reduce PWM high-frequency components

- Improve motor terminal voltage waveform

- Lower dv/dt stress on motor insulation

- Reduce electromagnetic interference (EMI)

- Improve motor operating stability and service reliability

The product uses low-loss cold rolled silicon steel cores, Class F insulation materials, vacuum impregnation technology, and optimized thermal structures to maintain stable performance during continuous industrial operation, providing an effective solution for long cable motor systems, automation equipment, and high-performance VFD applications.

Key Advantages

1. Improved VFD Output Waveform

Unlike a standard output reactor that mainly increases circuit impedance, the LC filtering structure provides greater attenuation of high-frequency switching components, resulting in a smoother motor voltage waveform with lower high-frequency distortion and reduced electrical stress on motor windings.

2. Reduced Motor Insulation Stress

High dv/dt PWM pulses can increase insulation stress, particularly when long cables are installed between the VFD and motor. The filter helps limit voltage spikes and reflected-wave effects, reducing stress on motor winding insulation and supporting longer-term motor operation.

3. Suitable for Long-Distance Motor Cables

Long motor cables introduce distributed capacitance that can increase charging current and reflected voltage. Dufew adjusts the electrical parameters according to system requirements for applications such as remote pump systems, outdoor motor equipment, underground machinery, and large production lines.

4. Improved Motor Operating Conditions

By attenuating high-frequency interference and output waveform distortion, the filter can help reduce motor electromagnetic noise, additional temperature rise, harmonic-related losses, and mechanical vibration associated with unstable inverter output waveforms.

Technical Design Features

Optimized LC Low-Pass Filtering Structure

The reactor and capacitor are matched according to the PWM output characteristics of the VFD. The resulting LC structure attenuates carrier-frequency components while maintaining transmission of the fundamental frequency and improving the voltage waveform at the motor side.

Low-Loss Magnetic Circuit Design

The magnetic system can use cold-rolled silicon steel cores, an optimized air-gap structure, and low-loss magnetic materials to maintain stable inductance characteristics and control magnetic losses during continuous operation.

Reliable Insulation and Thermal Design

The insulation system can incorporate Class F high-temperature insulation, vacuum impregnation, and flame-retardant insulation materials. These measures support dielectric strength, mechanical stability, and reliable operation under continuous industrial conditions.

Model Description

Example: SWF-4 3 2-1200

Technical Specifications

Typical Applications

Dufew Sine Wave Filter solutions are suitable for VFD systems requiring improved output waveform performance and motor protection.

Manufacturing Capability & Quality Assurance

Dufew Electric manufactures industrial power electronics components, including filters, reactors, braking resistors, transformers, and customized electrical solutions. For waveform filtering products, production is carried out through controlled processes from magnetic component preparation and winding to insulation treatment, impregnation, electrical testing, and final inspection.

Manufacturing processes include:

- Magnetic core processing

- Precision winding

- Insulation treatment

- Vacuum impregnation

- Electrical performance testing

Quality inspection covers key electrical and mechanical parameters, with checks including:

- Insulation resistance testing

- Dielectric withstand testing

- Electrical parameter verification

- Temperature rise testing

- Final appearance inspection

Dufew Electric also supports OEM manufacturing, customized electrical parameters, engineering application support, and project-based supply. Product drawings, test reports, and certification documents can be provided according to customer and project requirements.

Packaging & Delivery

Dufew provides export-standard packaging solutions for industrial electrical products.

Packaging includes:

- Moisture-resistant protection

- Shock-resistant fixing

- Reinforced wooden cases for heavy models

- Product identification labels

- Technical documents

Each unit is inspected before shipment to ensure product specifications meet customer requirements.

Sine Wave Filter vs Output Reactor

FAQ

Q1: What is the difference between a Sine Wave Filter and an output reactor?

A Sine Wave Filter uses an LC filtering structure to reduce PWM switching components and improve motor-side waveform quality. An output reactor mainly increases impedance to limit current changes and reduce voltage rise rate, but it does not significantly reshape the output waveform.

Q2: When should this product be installed in a VFD system?

It is recommended for applications with long motor cables, sensitive motors, strict EMC requirements, or systems where PWM voltage stress may affect motor reliability.

Q3: Can it support long-distance motor cable applications?

Yes. The filtering parameters can be customized according to cable length, motor power, VFD characteristics, and operating conditions.

Q4: Can Dufew provide customized solutions?

Yes. Dufew supports customized designs based on voltage rating, current capacity, carrier frequency, installation requirements, and specific application conditions.
