We offer a comprehensive portfolio including resistors, braking units, reactors, power filters, and transformers, with full customization options to meet diverse application requirements.

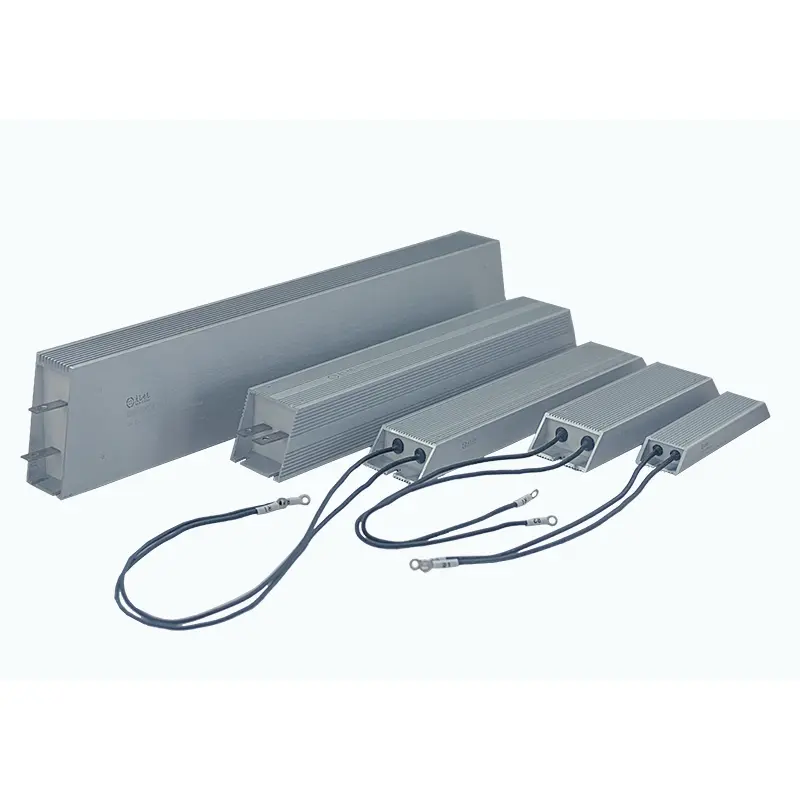

DUFEW Non-Inductive Aluminum Clad Resistor is specially designed for high-speed switching circuits, pulse power systems, inverter applications, and precision electronic equipment where conventional wirewound resistors may suffer from parasitic inductance effects.
Unlike standard power resistors that generate additional inductive reactance during rapid current changes, DUFEW adopts an advanced Ayrton-Perry bifilar winding structure to minimize magnetic field coupling and achieve ultra-low inductance performance.
By improving current response and reducing switching interference, this resistor helps protect sensitive power components, improve waveform stability, and enhance the reliability of high-frequency electronic systems.
Available from 50W to 6KW, with resistance values from 0.01Ω to 120kΩ, DUFEW provides customized low inductance resistor solutions for power electronics manufacturers, inverter suppliers, automation companies, and industrial equipment builders.
In modern power electronics, switching frequency continues to increase while components become more sensitive to electrical noise and voltage fluctuations.
A conventional resistor may introduce unwanted inductance during rapid current transitions, causing:
- Voltage overshoot
- Current waveform distortion
- EMI interference
- Semiconductor stress
- Control system instability
DUFEW Non-Inductive Aluminum Clad Resistor is developed to maintain stable electrical performance under fast-changing current conditions.
| Performance Feature | Engineering Value |
|---|---|
| Ultra-low inductance winding design | Minimizes unwanted inductive effects during high-speed switching |
| Ayrton-Perry bifilar winding | Cancels magnetic fields generated by current flow |
| Fast electrical response | Improves transient circuit performance |
| Stable pulse load capability | Handles repeated charging and discharging cycles |
| Low electromagnetic interference | Reduces noise affecting sensitive circuits |
| Aluminum thermal management structure | Maintains reliable operation under high power conditions |
The internal winding structure is the key factor that differentiates low-inductance resistors from conventional wirewound designs. DUFEW adopts the Ayrton-Perry bifilar winding principle, using two resistance wires wound in opposite directions to reduce the magnetic fields generated during current flow.
By allowing the magnetic fields of the two windings to partially cancel each other, this structure significantly reduces net magnetic flux and minimizes parasitic inductance, enabling faster electrical response and improved performance in high-speed switching applications.
High-frequency switching systems often experience rapid current changes, where parasitic inductance can generate unwanted voltage spikes and affect circuit stability. DUFEW low-inductance resistors are designed to handle transient energy effectively, suppress switching peaks, improve waveform stability, and reduce stress on sensitive semiconductor components.
They are particularly suitable for:
- IGBT inverter circuits
- MOSFET switching systems
- PWM power converters
- High-frequency electronic loads
During regenerative or dynamic braking operation, excess energy must be discharged quickly to maintain system stability. The low-inductance structure improves braking response, reduces switching interference, and helps protect inverter power modules from transient electrical stress.
In high-frequency power supply systems, parasitic inductance can affect switching waveforms and overall efficiency. DUFEW low-inductance resistors provide fast response characteristics for applications such as snubber circuits, current limiting circuits, and pulse absorption circuits.
For electronic testing systems, the response characteristics of resistance components directly influence measurement accuracy. The optimized low-inductance design helps achieve more accurate pulse response, reduce signal distortion, and improve test repeatability.
| Structure | Function |
|---|---|
| Alloy resistance wire | Provides stable resistance characteristics |
| Symmetrical bifilar winding | Reduces magnetic coupling |
| Mica insulation layer | Separates winding layers and improves stability |
| Quartz thermal filling | Enhances heat conduction |
| Aluminum housing | Provides mechanical protection and thermal management |
| Parameter | Specification |
|---|---|
| Product Type | Non-Inductive Aluminum Clad Resistor |
| Main Feature | Low Inductance Performance |
| Winding Technology | Ayrton-Perry Bifilar Winding |
| Power Range | 50W -- 6KW |
| Resistance Range | 0.01Ω -- 120kΩ |
| Operating Voltage | ≤1200V |
| Resistance Tolerance | ±3%, ±5%, ±10% |
| Temperature Coefficient | ≤300 ppm/℃ |
| Housing Material | Aluminum Alloy |
| Insulation Material | High Temperature Flame Retardant Compound |
| Dielectric Strength | 2500VAC / 60s |
| Insulation Resistance | ≥100MΩ |
| Standard | GB-5792 |
| Comparison Item | DUFEW Non-Inductive Aluminum Clad Resistor | Conventional Wirewound Resistor |
|---|---|---|
| Current Response | Designed for rapid current changes | Limited by parasitic inductance |
| Magnetic Effect | Opposing magnetic fields cancel each other | Magnetic fields accumulate |
| Switching Performance | Suitable for high-frequency circuits | Suitable mainly for low-frequency applications |
| EMI Control | Reduced electromagnetic interference risk | Higher noise generation |
| Semiconductor Protection | Helps reduce voltage spikes | May increase transient stress |
| Industry | Typical Use |
|---|---|
| Power Electronics | High-frequency energy absorption |
| EV Charging Systems | Switching protection circuits |
| Solar Inverters | DC energy discharge |
| Wind Power Systems | Converter protection |
| Servo Drives | Dynamic braking |
| Industrial Automation | High-speed control systems |
| Laboratory Equipment | Precision pulse testing |
DUFEW supports customized non-inductive resistor development according to application requirements.
Available customization:
| Custom Item | Options |
|---|---|
| Resistance Value | 0.01Ω-120kΩ |
| Power Rating | 50W-6KW |
| Inductance Requirement | Low-inductance customized design |
| Dimensions | Standard or special housing |
| Terminals | Stainless terminals or high-temperature wires |
| Electrical Parameters | Customized according to circuit requirements |
Because rapid current changes can generate parasitic inductance in conventional resistors, causing voltage spikes and electrical noise. Non-inductive resistors minimize these effects and improve circuit stability.
The main difference is the internal winding technology. DUFEW uses Ayrton-Perry bifilar winding to reduce magnetic field interaction, while standard resistors usually use conventional single-direction winding.
Yes. They are commonly used in inverter braking circuits, pulse absorption circuits, and power electronic systems requiring fast response.
Yes. DUFEW provides OEM customization for resistance value, power rating, mechanical dimensions, terminals, and low-inductance requirements.
